Engine Housing machining

Nickel-based alloy

Turbine housings are designed for maximum stability. For this reason, they are made of materials such as titanium alloys, Inconel or Waspalloy. Nickel-based alloys in particular are very difficult to machine due to their high toughness and temperature stability. In addition, it must be ensured that finishing work does not cause any structural changes or damage to the component.

Multi-axis turn/mill centres and vertical turret lathes are primarily used for machining these materials. Walter tools for turning, milling, drilling and threading enable you to machine engine housings with maximum efficiency, precision and process reliability


Roughing operation – Milling

Solution:

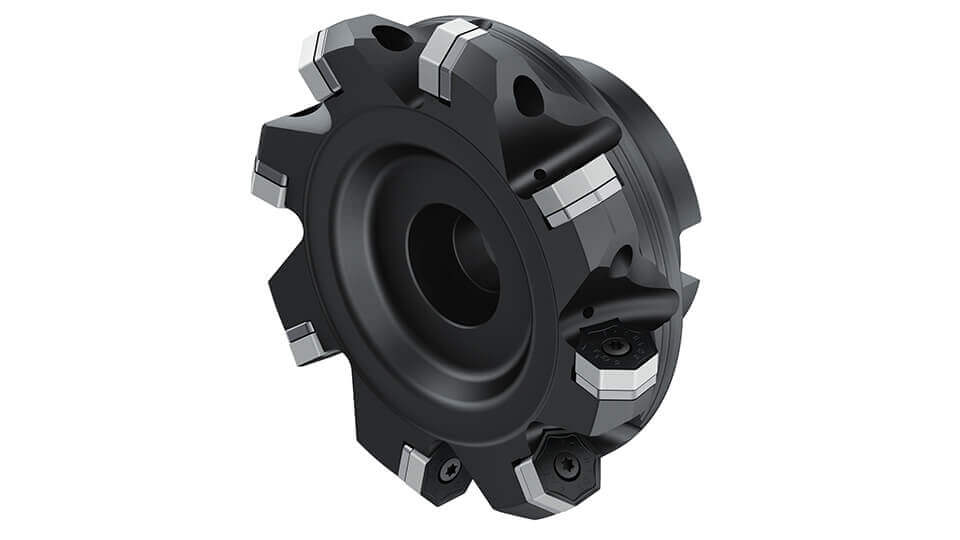

Walter BLAXX M3024 heptagon face milling cutter​

  • ► 14 cutting edges per indexable insert
  • ►  Stable, negative indexable inserts
  • ► Optimum support face and high feed per tooth thanks to solid carbide shim
  • ► High depth of cut
  • ► Positive, soft cutting action

Roughing external surfaces

Solution:

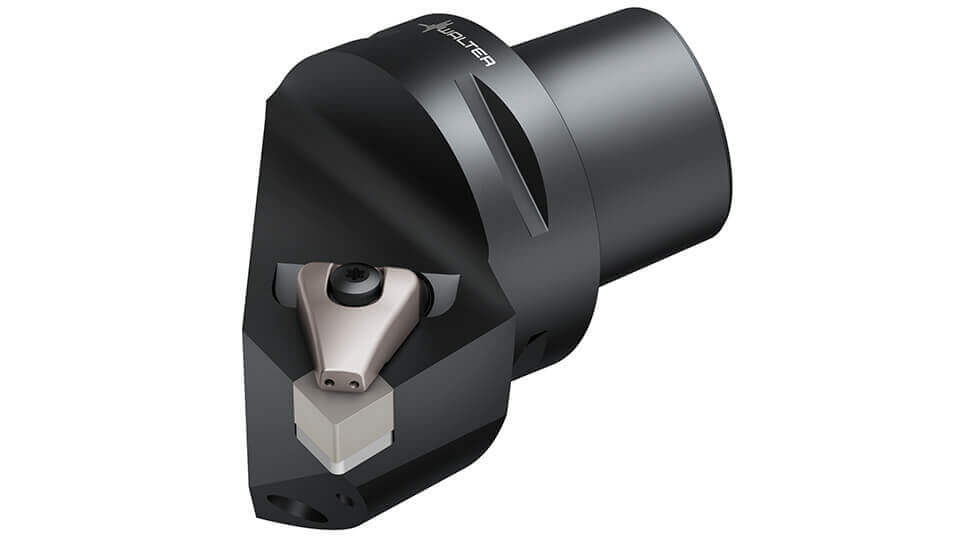

Walter Cut turning toolholder with precision cooling

  • ► CNGN1207 ceramic insert
  • ►  Rake face cooling for ideal surface quality
  • ► Extremely high cutting speeds

Tapping the mating face

Solution:

Walter Prototyp Prototex® TiNi Plus

  • ►  Innovative hard material coating and stable cutting edges
  • ►  Special geometry for machining ISO S alloys with emulsion
  • ► High flank clearance angle reduces friction in materials that tend to cause jamming
  • ► Wear-resistant, titanium-free ACN coating prevents weld formations

Solid drilling of connecting bores

Solution:

Walter Titex X·treme Plus

  • ►  Wear-resistant DPL coating
  • ►  Stable main cutting edge for maximum tool life and process reliability
