Pivot bearings

 Aluminium

Aluminium components reduce weight by up to 50%. Especially when it comes to the chassis/suspension components, unsprung masses are significantly lowered as a result. This has a positive influence on the driving comfort and the handling dynamics. Forged, high-strength and high-toughness components that permit significant deformation for safety reasons are particularly difficult to machine. They require an appropriate tool concept with good chip control

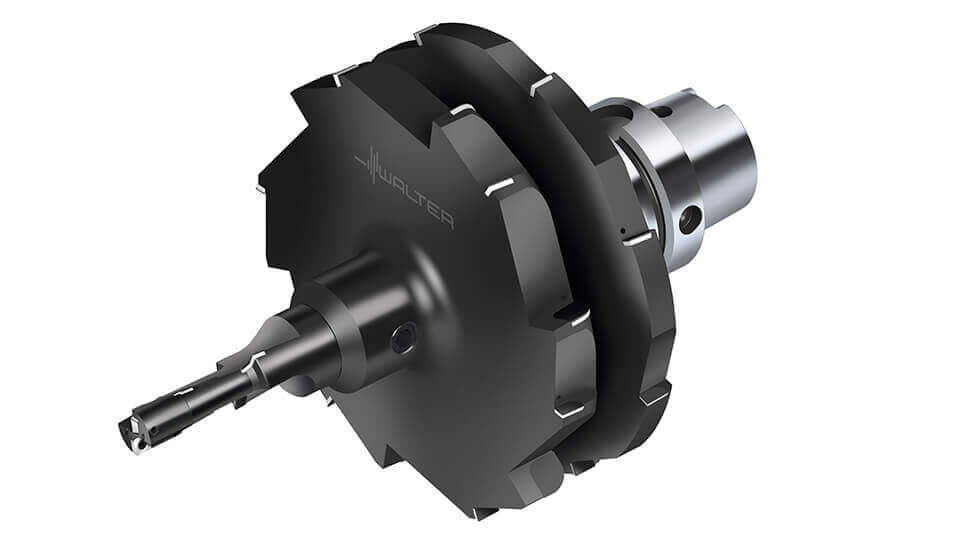

Upper king pin and support drilling, milling and back face deburring

Solution:

Walter PCD combination tool

  • ► Indexable solid carbide drill inserts with four cutting edges
  • ► Chamfering, back face deburring and spot-facing
  • ► With brazed PCD cutting edges
  • ► Milling on both sides with one pass

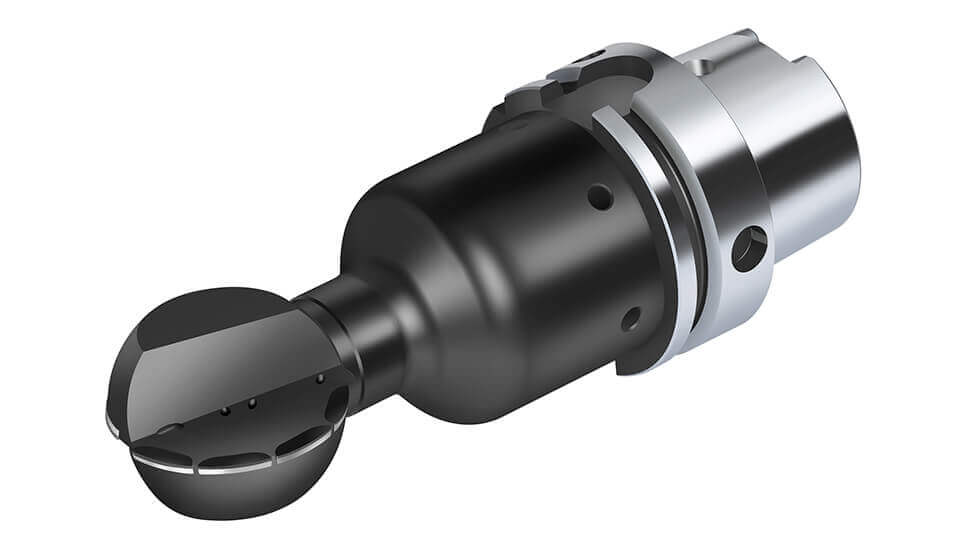

Ball seat milling for lower king pin

Solution:

Walter profile mill

  • ► Monoblock solution with brazed PCD cutting edges
  • ► Short, stable design
  • ► Optimised cooling for each cutting edge
  • ► With brazed PCD cutting edges
  • ► Optimised cooling for each cutting edge

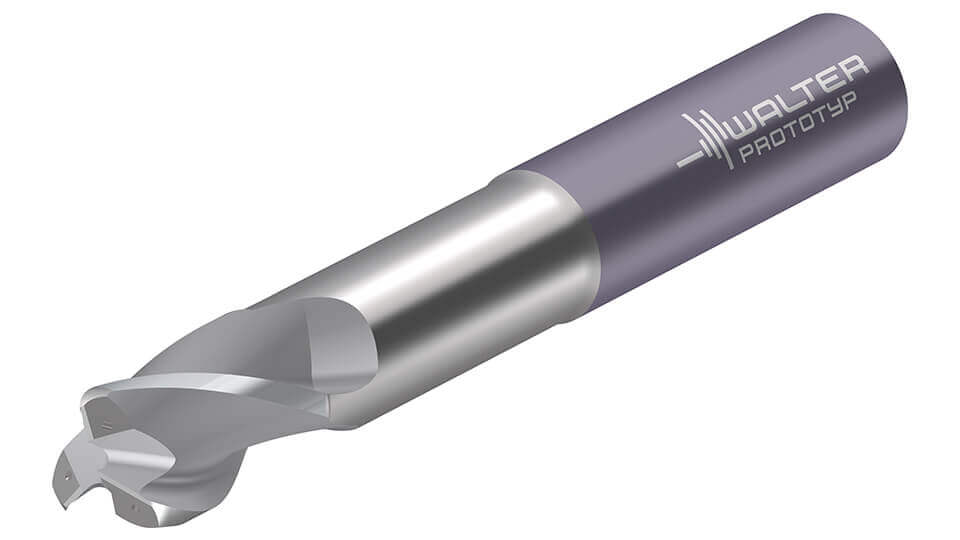

Contact surface milling and control cut on the opening

Solution:

Walter MB266 Supreme solid carbide milling cutter

  • ► High-performance solid carbide finish milling cutter
  • ► Polished flutes
  • ► With internal coolant
  • ► Shank with special surface treatment for better grip

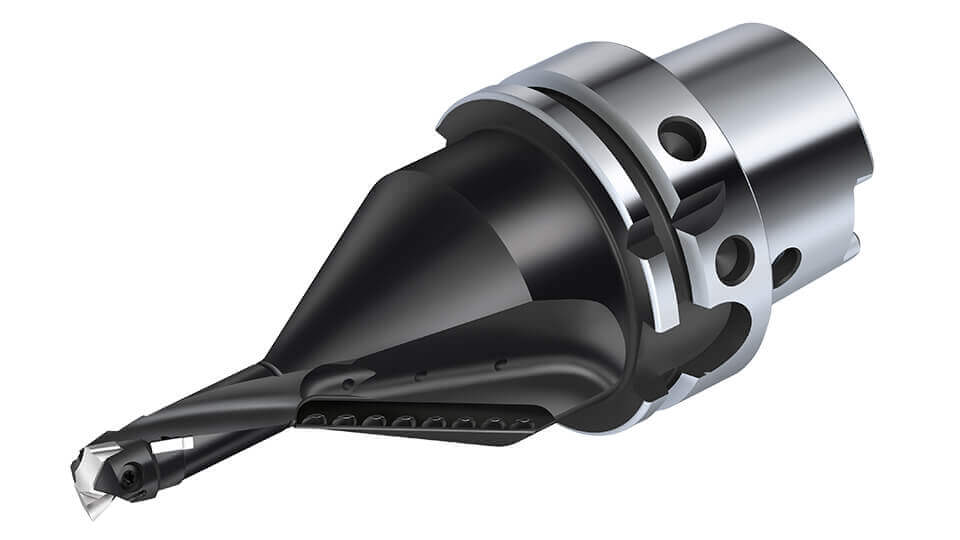

Lower king pin and support drilling, back face deburring and countersinking

Solution:

Walter PCD combination tool

  • ►  Chip breaker on extra-long PCD cutting edge
  • ►  PointDrill P6004 exchangeable solid carbide drill insert
