Brake callipers

 Cast iron

The brake calliper is an important component on a disc brake. In the modern car industry, they are made of cast iron (GGG50) or aluminium. The brake calliper is an essential safety component that must withstand high thermal and mechanical loads.

A key aim in machining brake callipers is to achieve the highest levels of process reliability and dimensional stability. In the face of ever-increasing pressure from competition, another indispensable ingredient of success in mass production is the ability to minimise per-part costs while maintaining superior quality. Our tools are up to the task.


Cylinder bore drilling

Solution:

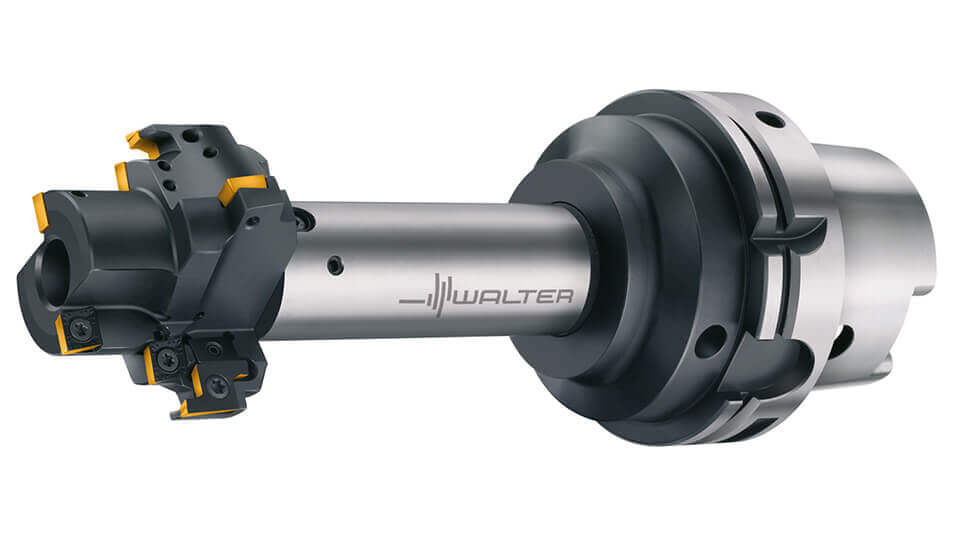

Walter combination tool

  • ► Combined indexable insert tool with various steps
  • ► Indexable inserts with new Tiger·tec® Gold technology

Mounting lug milling

Solution:

Walter slotting cutter set with highly positive cutting edges

  • ► Highly positive indexable inserts
  • ► Close tooth pitch for a high feed rate
  • ► Wide range of indexable inserts available

Milling facing coatings

Solution:

Walter slotting cutter with tangential insert design

  • ► Highly positive indexable inserts
  • ► Close tooth pitch for a high feed rate
  • ► Wide range of indexable inserts available

Circular interpolation for sealing grooves

Solution:

Adjustable Walter circular interpolation milling cutter with anti-vibration damping

  • ►  Each indexable insert has adjustable concentricity
  • ►  No vibration during machining
  • ►  Reliable machining as there are no chips trapped in the groove
  • ►  New Tiger·tec® Gold technology indexable insert coating
