Crankshaft

 Steel and cast iron

High tolerance and surface quality requirements make crankshafts exceptionally complex to machine. Highly precise, efficient tool concepts are necessary to meet these requirements.

As far as the economy of the machining process is concerned, increasingly efficient tools have to be developed and deployed. Solutions tailored to specific customer needs are created and continuously further developed together with our partners and machine manufacturers. The new indexable inserts with Walter Tiger·tec® Gold technology are just one example of this. These are the foundations on which you can continuously build on your success and increase your lead over the competition.

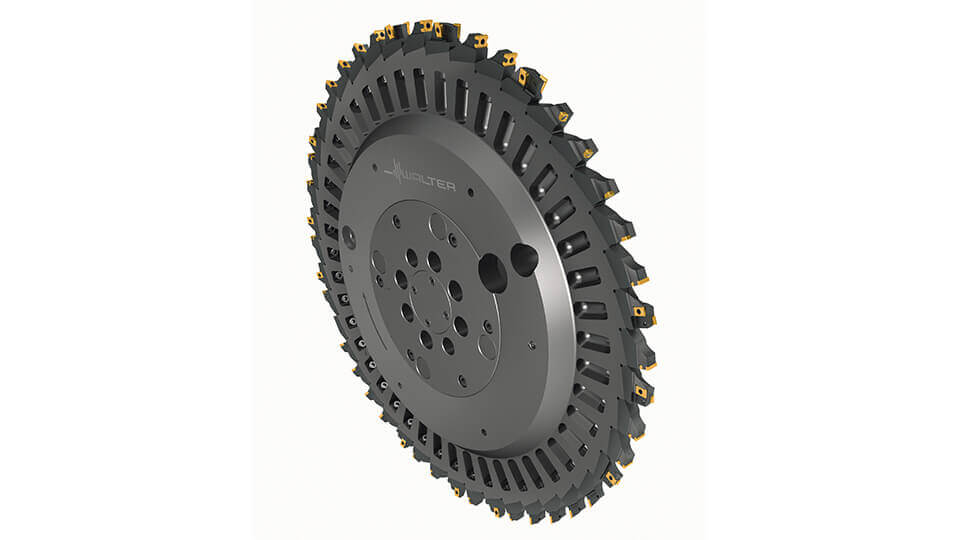

TTB – turn turn broaching

Solution:

Turn turn broach disc

  • ► Innovative indexable insert concept with semi-standard indexable inserts
  • ► Outer diameter up to 700 mm
  • ► Up to 45 cartridges

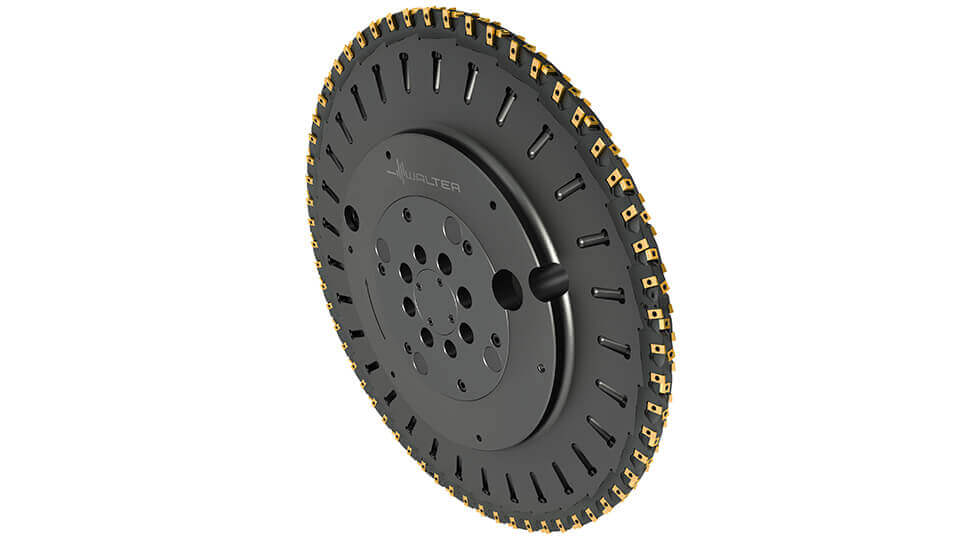

External milling for pin and main bearings

Solution:

Walter external milling cutter with Tiger·tec® Gold indexable inserts

  • ► Outer diameter 700 mm
  • ► Indexable inserts with new Tiger·tec® Gold technology
  • ► 48 to 120 teeth

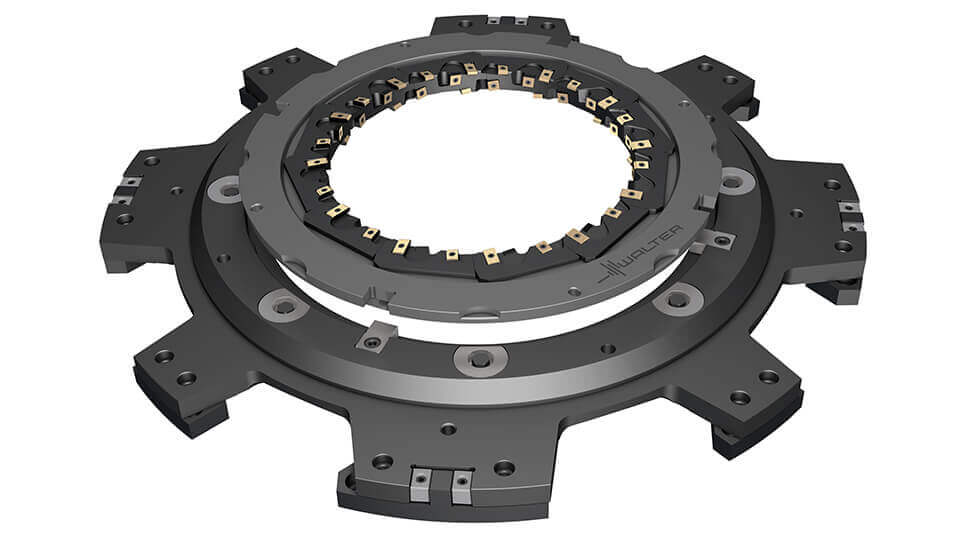

Internal milling for pin and main bearings

Solution:

Walter internal milling cutter with Tiger·tec® Gold indexable inserts

  • ► Inner diameter 180–350 mm
  • ► Innovative indexable insert concept: Indexable inserts with new Tiger·tec® Gold technology
  • ► 12 to 36 teeth

Drilling an oil duct

Solution:

Walter DC173 solid carbide drill

  • ►  For steel and cast iron materials
  • ►  Suitable for use with minimum quantity lubrication
  • ►  Dc = 3–12 mm; L= 12 ˣ Dc to 35 ˣ Dc
  • ►  140° lead angle
  • ►  Suitable for reconditioning
