Rails and points

 Setting the course for perfect machining

The primary objective when manufacturing Vignole or transition profiles and points is always ensuring a long service life. At the same time, rails and points are exposed to heavy loads on a daily basis. With tensile strengths of between 700 and 1600 N/mm2, the rail steel used presents a real challenge for machining. The requirement here is for tough tools which can be used flexibly in a very wide range of conditions. The powerful Walter milling tools are ideal in such circumstances. They are available for all current rail profiles and pitches and provide a high degree of process reliability and productivity, whatever type of material is used.

Multi-axis turn/mill centres and vertical turret lathes are primarily used for machining these materials. Walter tools for turning, milling, drilling and threading enable you to machine engine housings with maximum efficiency, precision and process reliability


Milling the rail head

Solution:

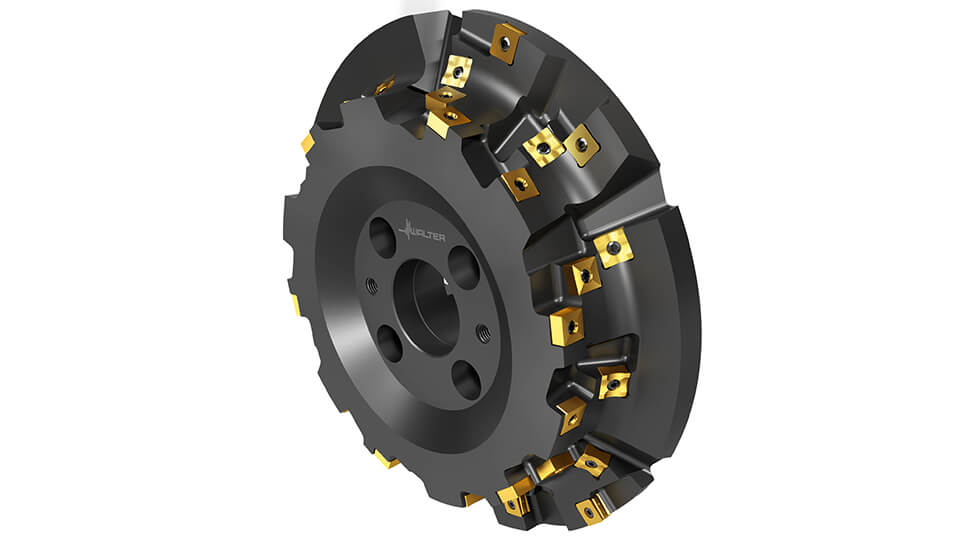

Walter special milling cutters

  • ► Diameter adapted to match the machine and workpiece
  • ► For all common profiles
  • ► Stable insert seat with minimum tolerances

Fishplate-chamber machining

Solution:

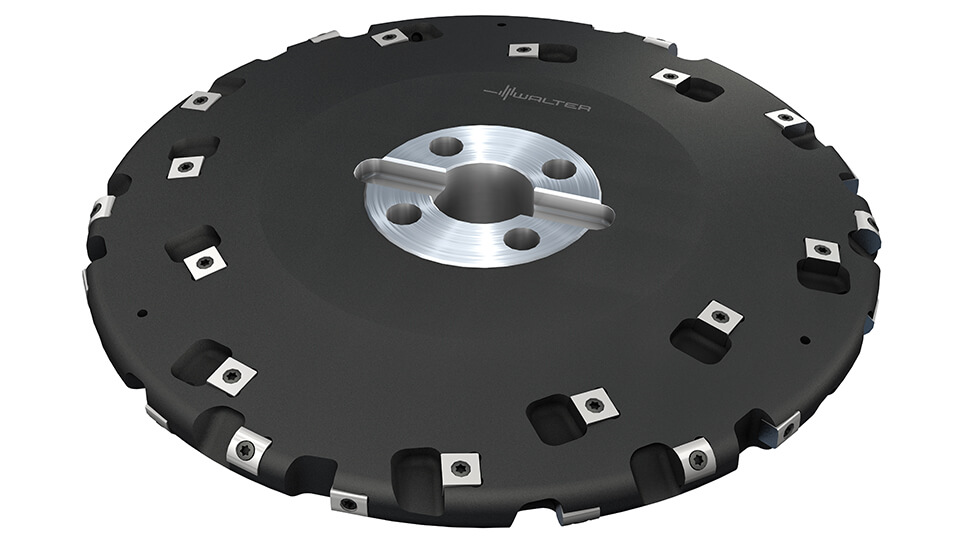

Walter special milling cutters

  • ► Optimum number of cutting edges
  • ► Perfect distribution of chip space
  • ► Machining any profiles

Machining transition profiles (1)

Solution:

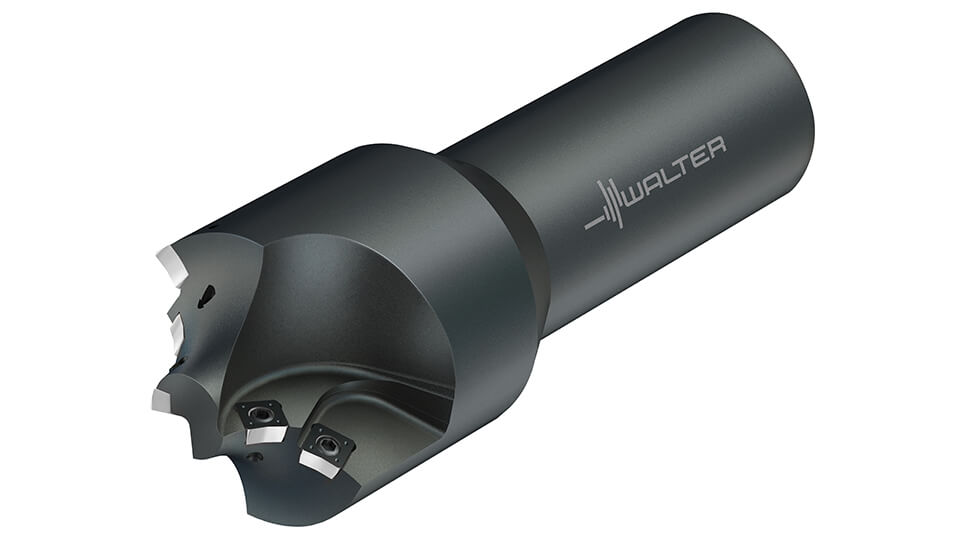

Walter profile mill

  • ► Optimum arrangement of cutting edges
  • ► Machining straight deep grooves and points in a single operation

Machining transition profiles (2)

Solution:

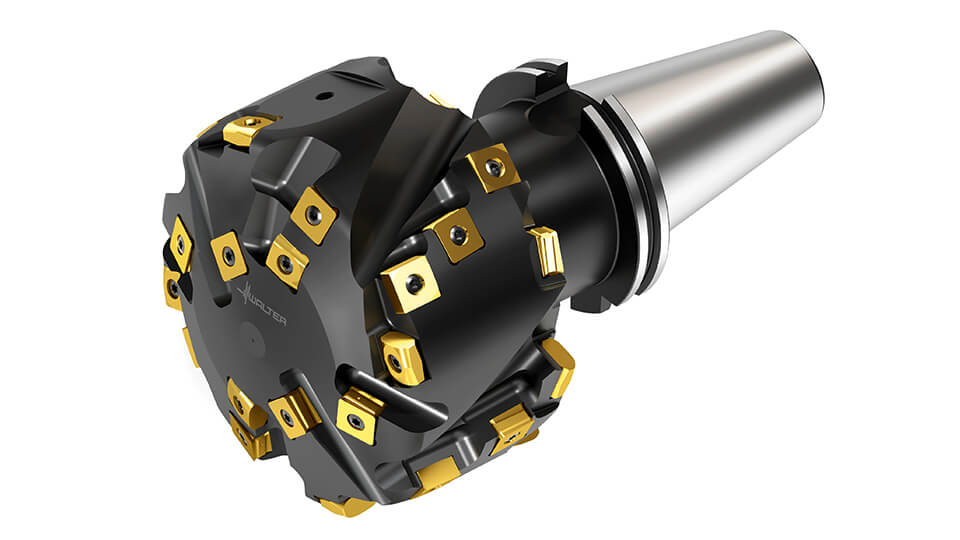

Walter profile mill

  • ►  Different form inserts
  • ►  Machining any common profile types
  • ► Machining the profile at the transition to the rail head
