Wheel set

 Wheel machining in detail

A wheel set for a modern rail vehicle consists of two monoblock wheels and one axle. These vehicle components are important for vehicle safety and must be able to withstand enormous physical and thermal stresses. The demands on material and manufacturing process are accordingly high. Forged steel (tensile strength 800 to 1000 Nm/mm2) needs to be machined with a high degree of precision.

This is because the surface quality has a direct influence on the running characteristics and, consequently, on energy efficiency. Walter turning tools are made for such challenges and provide the user with an extremely high level of precision, reliability and flexibility in one cost-effective machining process.


Machining the inner profile

Solution:

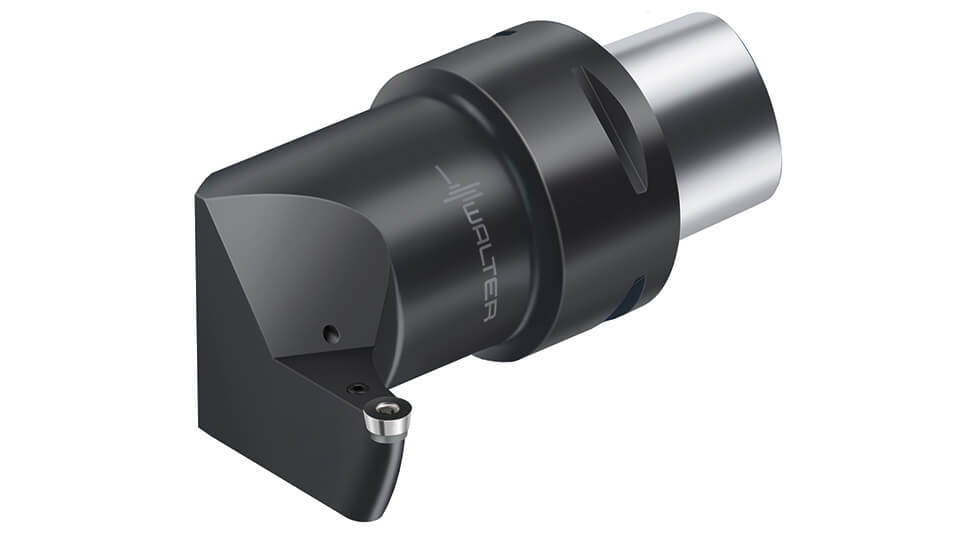

Walter Capto™ turning toolholder

  • ► Machining the inside of the wheel
  • ► Walter CaptoTM adaptor
  • ► Stable round insert

Machining the outer profile

Solution:

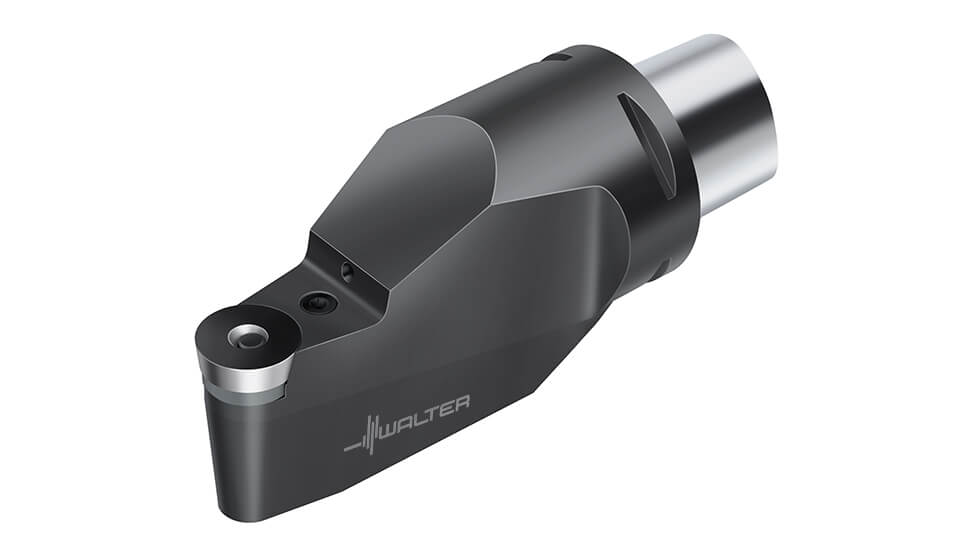

WalterCapto™ turning toolholder

  • ► The Walter CaptoTM C8 adaptor allows for enormous cutting forces

Internal and external turning

Solution:

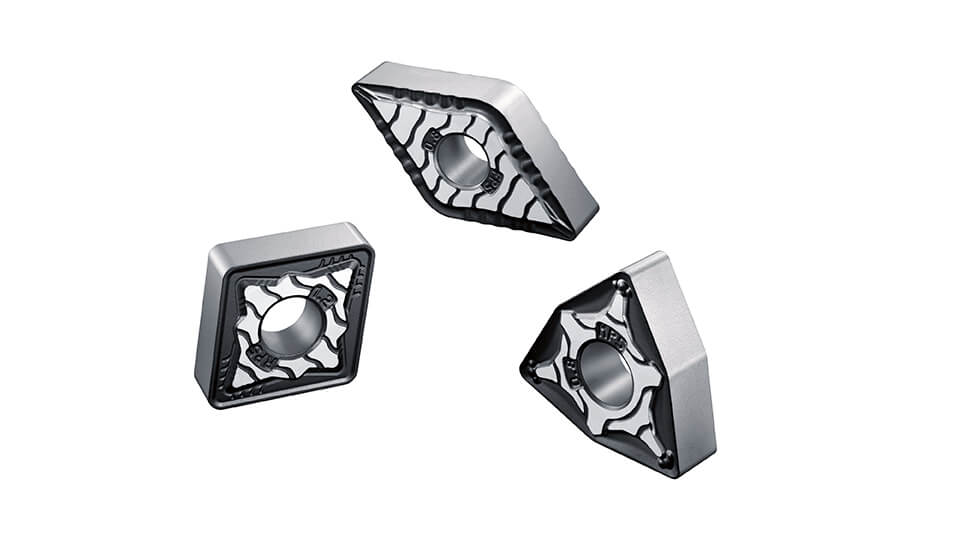

Tiger·tec® Silver indexable inserts

  • ► Circumference-sintered Tiger·tec® Silver indexable insert

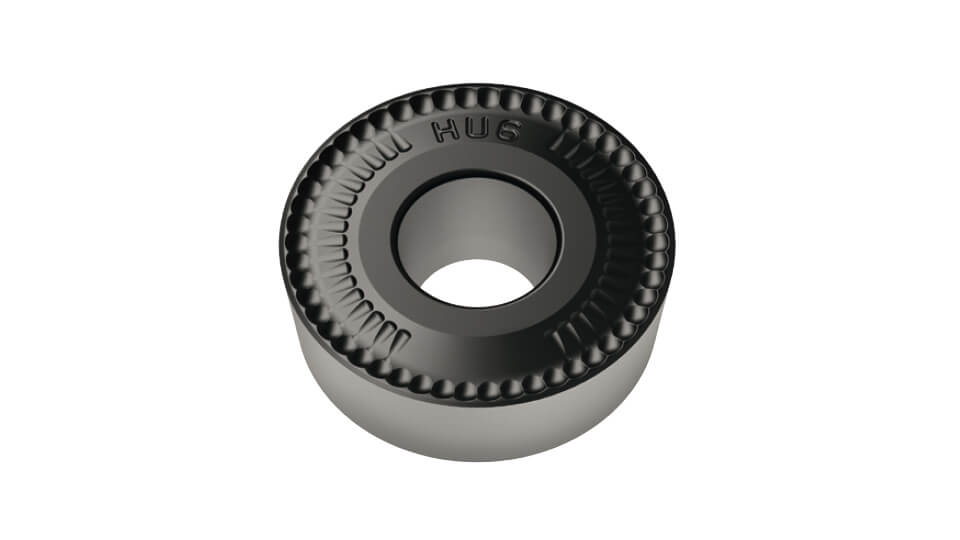

  • ► HU6 geometry – specially designed for medium to heavy machining of solid wheels
  • ► Excellent chip control

General ISO P turning

Solution:

ISO P turning insert

  • ► For machining steel with optimised geometry
  • ►  Tiger·tec® Silver cutting tool materials
